Anchor Bolt Testing Rentals
Anchor bolt testing rentals provide controlled hydraulic load testing solutions for verifying anchor bolt strength, pullout resistance, and installation compliance. Anchor bolt testing is commonly required for structural steel connections, concrete foundations, bridge projects, wind turbine foundations, industrial equipment installation, and safety-critical construction work.
Testing is often performed to confirm anchor bolt capacity and to meet engineering requirements, inspection standards, or regulatory documentation. Anchor bolt testing systems typically use hydraulic rams, reaction frames, load cells, and calibrated gauges to apply measured load to the anchor assembly.
Hydraulic Rentals supplies anchor bolt testing rentals for projects throughout New York, New Jersey, and Connecticut. To discuss test requirements and equipment setup, call 866-522-5464 and speak with a testing equipment specialist.
What Is Anchor Bolt Testing?
Anchor bolt testing is the process of applying controlled tension load to installed anchor bolts to verify strength, pullout resistance, and installation quality. This testing ensures that the anchor bolt system meets design specifications and can safely support the intended structural loads.
Testing is commonly performed during construction or commissioning to confirm installation compliance. It may also be required for retrofits, repairs, or re-certification of existing structures.
Anchor bolt testing is typically performed using hydraulic pull testing systems that apply tension force while measuring load and displacement.
Key Features & Benefits of Anchor Bolt Testing Rentals
Anchor bolt testing rentals provide accurate load verification for critical structural connections.
Confirms anchor bolt installation integrity
Testing verifies that bolts are installed correctly and meet engineering requirements.
Provides measurable load verification
Load cells and calibrated gauges allow accurate reporting of applied test load.
Supports inspection and compliance requirements
Many projects require documented proof of anchor bolt performance.
Reduces risk of structural failure
Testing identifies weak anchors before they become safety hazards.
Supports new construction and retrofit projects
Anchor bolt testing is useful for both new installation verification and older structure evaluation.
Cost-effective alternative to purchasing testing systems
Renting provides access to professional testing equipment without high ownership cost.
Common Applications for Anchor Bolt Testing Rentals
Anchor bolt testing is used across many industries and project types.
Common applications include:
- Structural steel anchor bolt verification
- Foundation anchor testing for buildings and bridges
- Industrial machinery foundation installation testing
- Tower and pole anchor bolt testing
- Retrofit and repair verification testing
- Safety inspections and structural audits
- Wind turbine foundation anchor testing
- Concrete anchor pull testing applications
Anchor bolt testing is often required when load safety and compliance documentation is critical.
Types of Anchor Bolt Testing Methods
Anchor bolt testing may be performed using different testing approaches depending on the project.
Proof load testing
A controlled load is applied to verify the anchor can withstand the required load without failure.
Ultimate load testing
Higher loads may be applied to evaluate failure point in certain engineering test conditions.
Pull-out testing
Used to measure pull-out resistance of anchors installed in concrete or masonry.
Torque verification testing
Some applications require torque verification in addition to hydraulic load testing.
Hydraulic Rentals can help determine the correct testing method and equipment configuration for your project.
Equipment Commonly Used for Anchor Bolt Testing
Anchor bolt testing requires specialized equipment designed to apply controlled tension force.

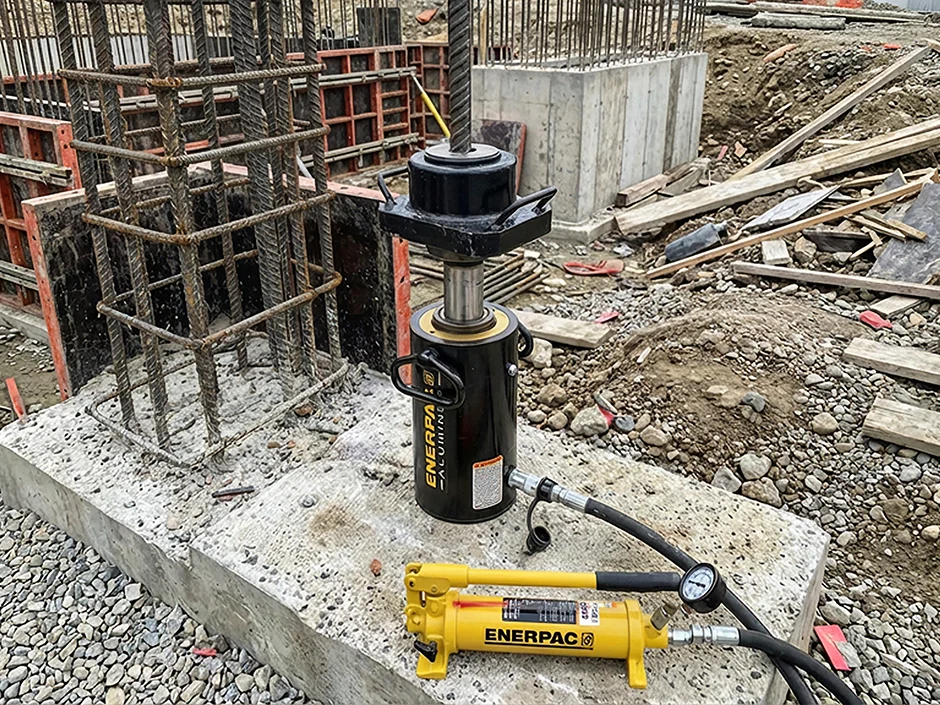

Hydraulic pull rams
High-force hydraulic rams used to apply tension load.
Reaction frames and test bridges
Used to provide a stable reaction point for pulling against the concrete or structure.
Load cells
Used to measure applied force accurately during testing.
Pressure gauges
Used for monitoring pressure, often used alongside load cells.
Dial indicators or displacement measurement tools
Used to measure anchor movement during testing.
Hydraulic Rentals can supply complete anchor bolt testing rental kits including hydraulic pumps, rams, reaction frames, hoses, and measurement equipment.
Why Rent Anchor Bolt Testing Equipment Instead of Buying?
Anchor bolt testing systems are specialized and often used only when required by inspection or engineering requirements.
Avoid high equipment ownership cost
Testing systems can be expensive and require calibration.
Get the correct capacity system for each job
Different anchor bolts require different load capacities and frame setups.
Support inspection and compliance requirements quickly
Rental systems can be delivered rapidly to meet inspection deadlines.
Access calibrated and job-ready equipment
Hydraulic Rentals can supply equipment that is ready for professional testing applications.
