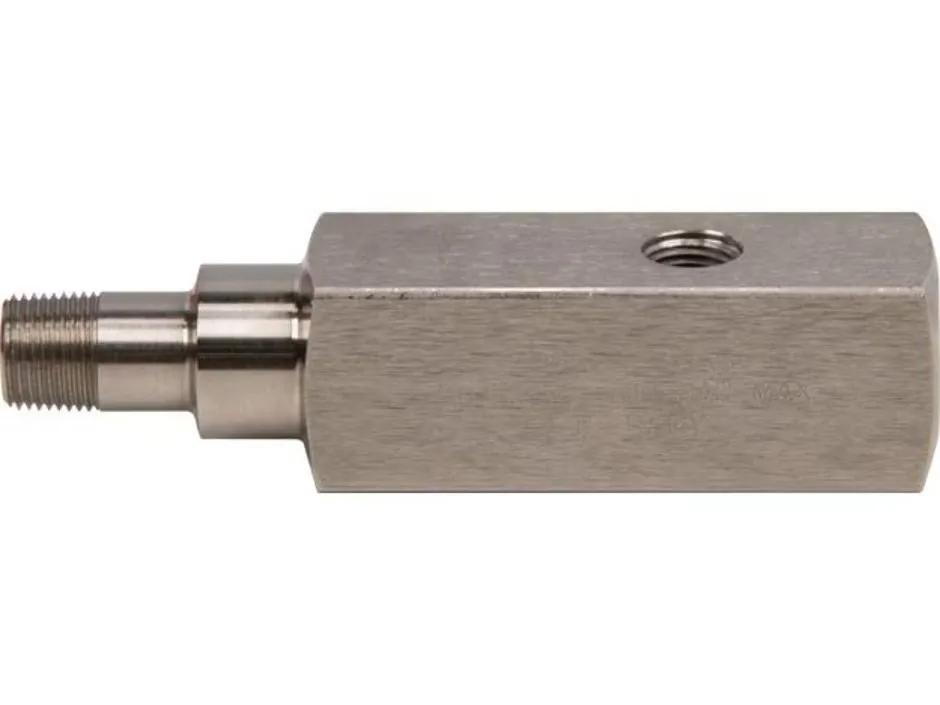

The GA3 Gauge Adaptor is a high-pressure hydraulic fitting designed to provide a convenient gauge connection point within a hydraulic system. Featuring a 1/4 in. NPT gauge port and a maximum working pressure of 10,000 psi, this adaptor allows operators to monitor hydraulic pressure during lifting, tensioning, testing, and bolting applications.
Commonly used with hydraulic pumps, cylinders, torque wrenches, rebar couplers, anchor bolt testing equipment, and custom hydraulic tool assemblies, the GA3 enables quick installation of pressure gauges without modifying the primary hydraulic circuit. By providing accurate pressure readings, operators can verify system performance, monitor applied loads, and improve operational safety.
Gauge Adaptors (GA-Series)
• For easy mounting of a pressure gauge onto your system
• Male end screws into pump or cylinder port, female end accepts hose or coupler, 3rd port is for gauge connection
• GA918 provides for swivel connection
• Simplifies gauge installation and reading.
Features
Common Applications
The Enerpac GA4 Gauge Adaptor is commonly included in hydraulic testing and tensioning packages where pressure monitoring is required. The adaptor provides a convenient connection point for pressure gauges, allowing operators to monitor hydraulic system pressure during lifting, tensioning, pulling, and testing applications. It is frequently used in anchor bolt testing kits, rebar tensioning systems, and custom hydraulic toolboxes where accurate pressure readings are essential.
🔹 Best Suited For
Anchor bolt testing applications
Rebar grip testing systems
Hydraulic pressure monitoring
Cylinder load verification procedures
Structural and civil engineering projects
Custom hydraulic testing and maintenance toolkits
🔹 Key Considerations
Provides a dedicated 1/2-inch NPT gauge connection point.
Designed for hydraulic systems operating up to 10,000 psi.
Allows pressure gauges to be integrated into hydraulic circuits.
Supports force verification when used with calibrated gauges and cylinders.
Compact design makes it easy to incorporate into portable hydraulic systems.
🔹 Rental Insight
The GA4 Gauge Adaptor is often overlooked but plays a critical role in hydraulic testing and monitoring applications. Contractors frequently include this adaptor in anchor bolt testing packages, rebar grip systems, and custom hydraulic toolboxes because it enables pressure gauges to be connected quickly and safely. When paired with hydraulic cylinders and calibrated gauges, it helps operators monitor system performance and verify applied loads during testing operations.
The applied load depends on project specifications and anchor design requirements.
They can. Hydraulic Rentals can supply complete flat jack rental packages including hoses, couplers, and pressure gauges.
You need a grip size that matches your rebar diameter and grade.
Yes. Flat jacks are commonly used for lifting bridge components during bearing replacement.
