RCH-Series Hollow Plunger Cylinders offer versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull or lifting applications.
Enerpac cylinders are built to withstand tough conditions and demanding applications. These RCH cylinders have a baked enamel finish to resist corrosion. The center hole design has base holes and collar threads for easy fixturing. For models over 20 tons, the RCH series has nickel-plated floating center tube to reduce side load damage and increase the product life
Maximum Operating Pressure 10,000 psi
Capacity Class 60 ton
Maximum Cylinder Capacity Advance 63.6 short tons
Stroke 3 in

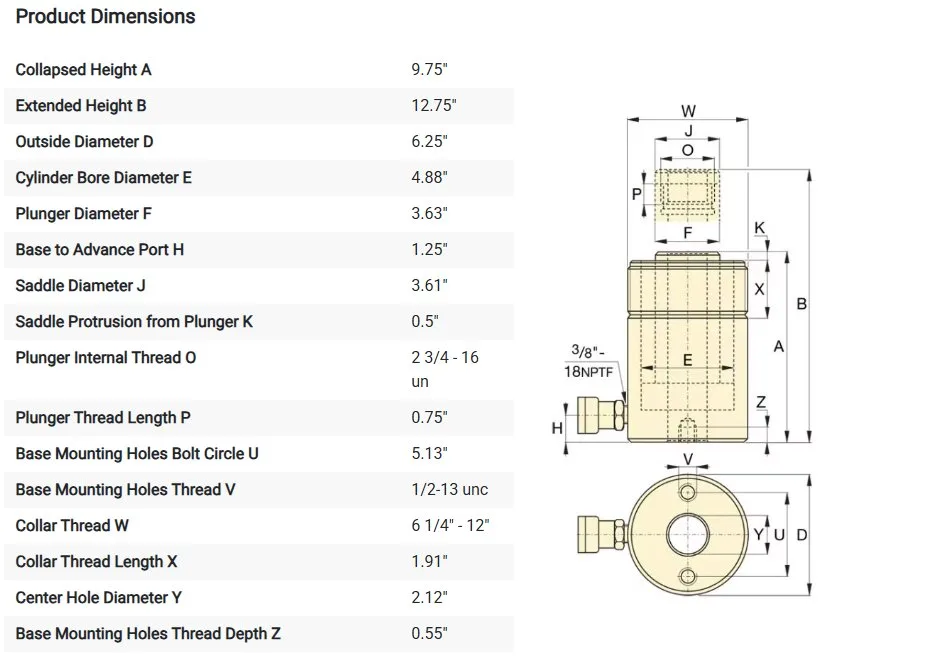

Collapsed Height 9.75 in
Extended Height 12.75 in
Center Hole Diameter 2.12 in
Return Type Single-Acting, Spring Return
Plunger Type Hollow
Material Steel
Cylinder Effective Area Advance 12.73 in2
Oil Capacity Advance 38.2 in3
Surface Treatment Paint
Coupler CR400 Coupler
Weight 62 lbs

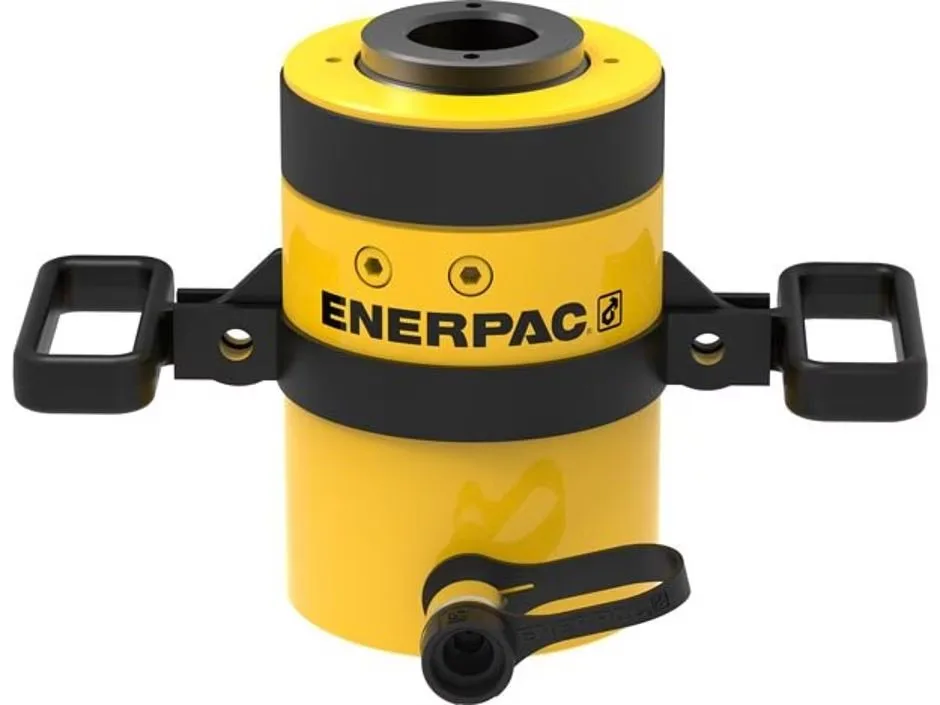

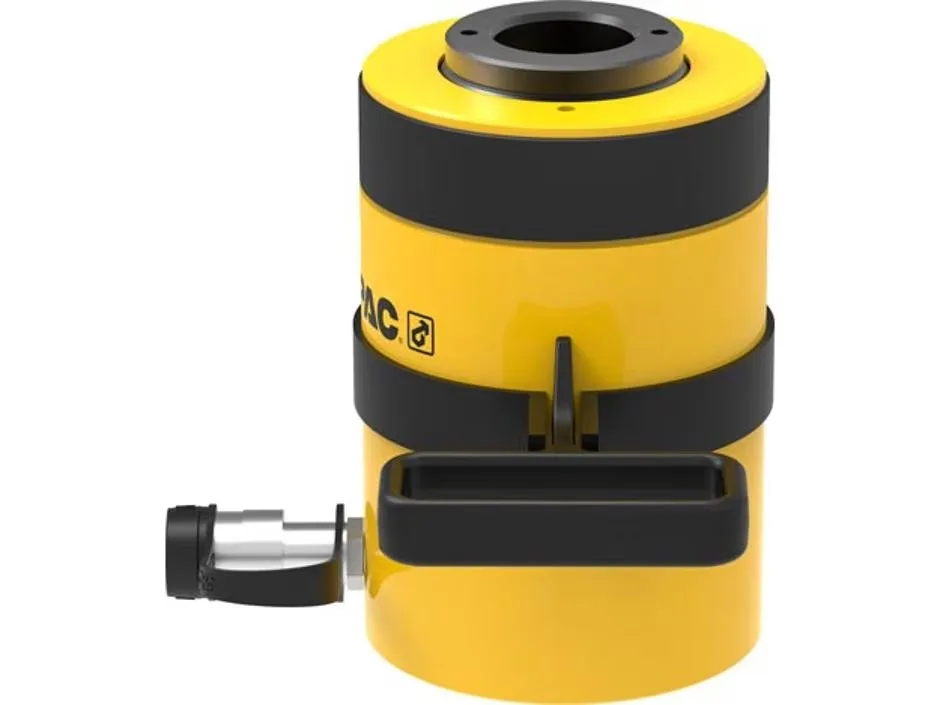

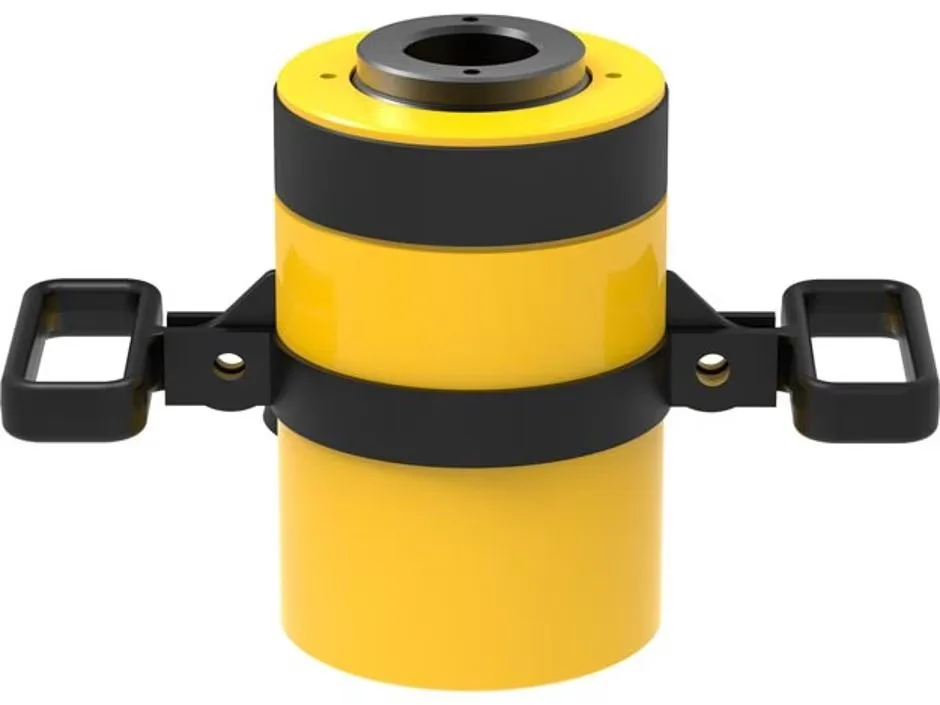

The Enerpac RCH603 hollow plunger hydraulic cylinder is a popular rental choice for contractors performing high-capacity anchor testing, structural tensioning, and controlled pulling operations. Its center-hole design allows threaded rods, cables, and anchor bolts to pass directly through the cylinder, making it ideal for proof load testing and tensioning applications requiring greater force than smaller hollow plunger models. Renting provides access to specialized hydraulic equipment without the costs associated with ownership, maintenance, calibration, and storage.
🔹 Best Suited For
High-capacity anchor bolt testing and proof load verification
Hollow plunger tensioning applications
Structural and civil engineering projects
Bridge construction and infrastructure maintenance
Utility and transmission tower construction
Applications requiring controlled pulling force through threaded rods, tendons, or cables
🔹 Key Considerations
Requires a compatible hydraulic pump, hose assembly, and couplers.
Hollow plunger design allows rods, anchors, and cables to pass through the cylinder center.
Proper reaction fixtures are required for anchor testing applications.
🔹 Rental Insight
The RCH603 is a widely used hollow plunger cylinder for contractors requiring substantial pulling and tensioning force while maintaining the flexibility of a center-hole design. Its combination of high capacity, compact dimensions, and versatile operation makes it suitable for demanding testing, maintenance, and infrastructure applications.
Center hole cylinders are fully compatible with standard 10,000 PSI hydraulic systems from Enerpac, Simplex, and Power Team when properly matched.
Pull-out testing measures the resistance of an anchor to being pulled out of the concrete or base material.
Center hole cylinders are commonly used for pulling, tensioning, and detensioning applications when properly configured with threaded adapters and reaction fixtures.
Anchor bolt testing is a controlled load test used to verify the strength and installation quality of anchor bolts.
