The Simplex RCD10010A is a 103 ton double-acting center hole hydraulic cylinder designed for high-force pushing and pulling applications. Available for rental, it delivers precise control for demanding industrial and construction projects.
The Simplex RCD10010A double-acting center hole hydraulic cylinder is engineered for applications requiring controlled force in both extension and retraction. Its center hole design allows threaded rods, cables, or anchor bolts to pass through the cylinder body, making it ideal for tensioning, pulling, and positioning tasks. With a 103 ton capacity and a 10.1 in stroke, this cylinder provides consistent performance under high-load conditions while maintaining precise control throughout the operation. The double-acting function enables powered retraction, improving efficiency and reducing setup time compared to spring-return models. Commonly used with high-pressure hydraulic pumps, this cylinder is well suited for rental use on short-term or specialized projects where ownership is impractical.

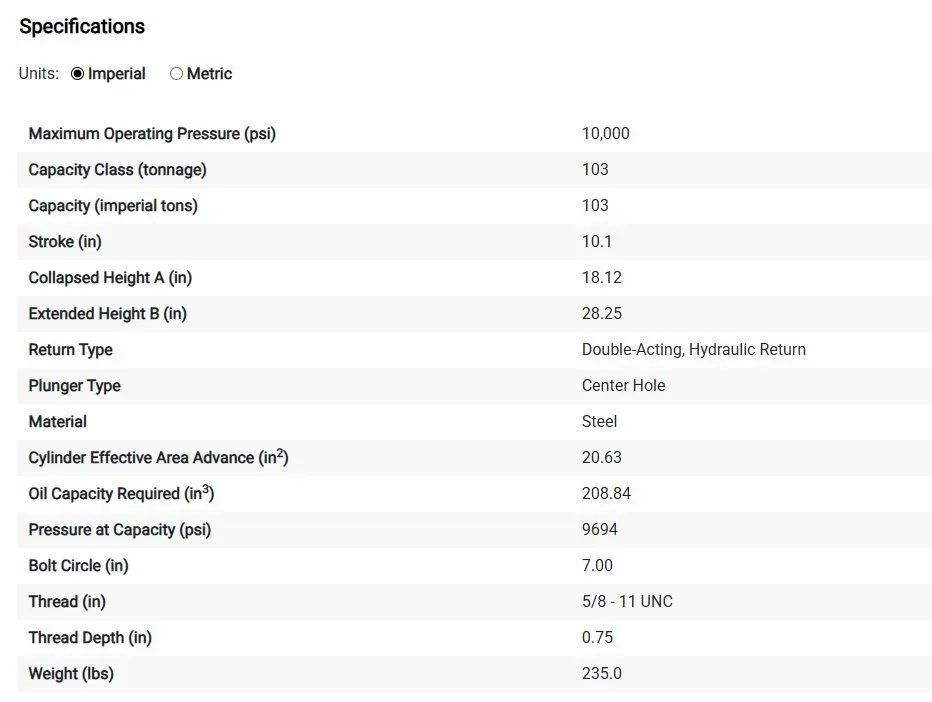

Capacity: 103 ton
Stroke Length: 10.1 in
Acting Type: Double-Acting
Cylinder Type: Center Hole Hydraulic Cylinder
Operating Pressure: 10,000 psi
Application Type: Push & Pull Operations
Anchor bolt tensioning
Structural pulling operations
Bridge construction and repair
Heavy equipment maintenance
Industrial alignment and positioning
Double-acting hydraulic pumps
High-pressure hydraulic hoses
Pressure gauges
Threaded pull rods and adapters
Hydraulic couplers
Renting the Simplex RCD10010A center hole cylinder provides access to high-capacity hydraulic force without the cost of ownership. This cylinder is ideal for temporary or project-based rental applications, allowing contractors and maintenance teams to scale equipment needs efficiently while maintaining professional-grade performance on site.
This hydraulic cylinder must be operated by trained personnel and used in accordance with manufacturer guidelines. Always verify load ratings, hose connections, and pump compatibility before operation to ensure safe and reliable performance.
Center hole cylinder rentals provide access to specialized equipment for project-specific needs without the cost, storage, or maintenance requirements of ownership.
Center hole cylinders are fully compatible with standard 10,000 PSI hydraulic systems from Enerpac, Simplex, and Power Team when properly matched.
Center hole cylinders allow precise tensile force to be applied directly along the bolt axis, ensuring accurate preload without inducing bending or misalignment.
Center hole cylinders typically require a compatible hydraulic pump, hoses, pressure gauge, and appropriate threaded adapters or fixtures.
